IROX infrared - cut
- Near infrared blocking pigment and ink were designed by applying a proprietary nano-particle synthesis and dispersion technologies AWO™
- Excellent particle size uniformity and visible transparency
- High NIR blocking ability (cut off 800 ~ 2500nm) and strong durability
- Excellent compatibility with various types of resins and any other dispersion sol (ex. ATO, ITO, organic pigment nano ink)
- It does not cause metal oxidation when coated on metal sputtered film substrate.
Product
-
IROX AWO™
nano dispersion & powder
Applications
-
-
- Architecture window film
-
-
-
- Automotive window film
-
-
-
- Photo-thermo keeping warm fiber
-
Spectrum

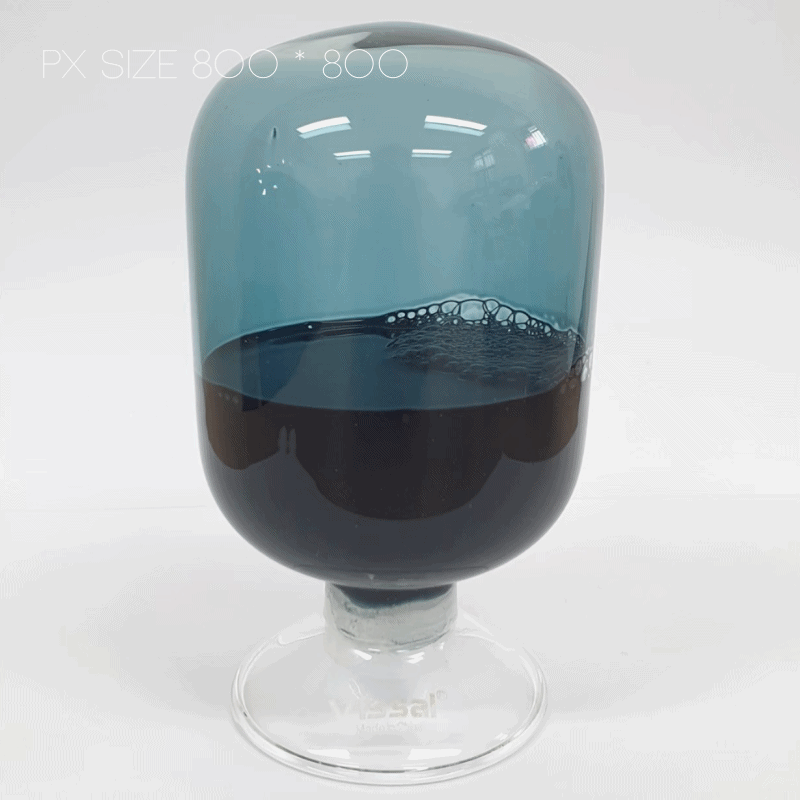

Specification ( IROX AWO™ dispersion sol)
| Appearance | Blue liquid |
|---|---|
| Particle size | 40~50 nm |
| Solid contents | up to 20 wt.% |
| Viscosity | 10 ~ 50 cps |
| Base solvent | MEK or MIBK |
- Customization possible after ordering consultation
- Other IR-cut materials other than IROX AWO™, e.g. ATO, ITO and other materials can be ordered
